SGPL-2856.8F100R
PLL SGPL-2856.8F100R
- Features
- Low phase noise
- Internal CPU
- Applications
- Base station
- Satellite Communications
| Parameters | Unit | Specification |
|---|---|---|
| Output Frequency | GHz | 2.856.8 |
| Output Power | dBm | 0 |
| Output Impedance | Ohm | 50 |
| Supply Voltage(Vcc1) | VDC | 5.5 |
| Supply Voltage(Vcc2) | VDC | 6.5 |
| Supply Current | mA | 300 |
| Spurious | dBc | -70 |
| Harmonics | dBc | -20 |

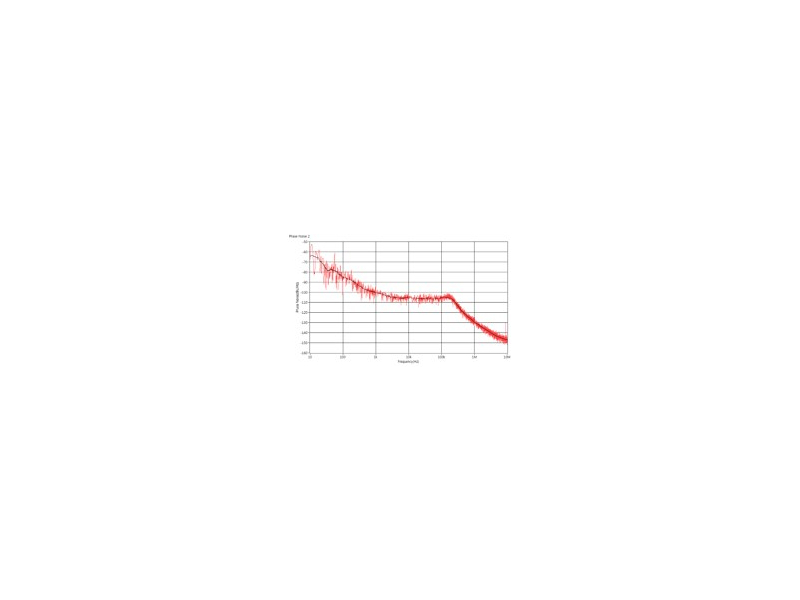

| Phase noise | dBc/Hz | 100Hz-75 1KHz-95 10KHz-105 100KHz-105 |
| Locked Alarm | MHz | TTL Low |
| Reference Frequency | dBm | 100 |
| Reference Power | 5 | |
| Frequency Stability | ppm | Same as ref |
| Operating Temperature | ℃ | -35 to +50 |
| Storage Temperature | ℃ | -40 to +85 |
