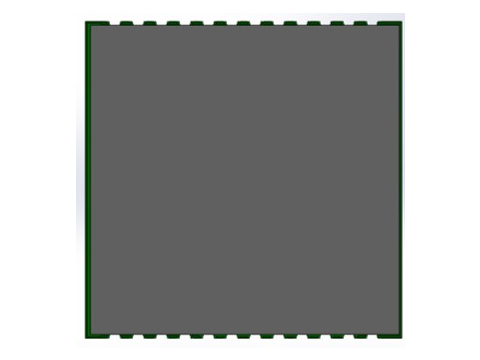

SGPL-100F-10R-AK
PLL SGPL-100F-10R-AK
- Features
- Low phase noise
- Internal CPU
- Applications
- Base station
- Satellite Communications
| Parameters | Unit | Specification |
|---|---|---|
| Output Frequency | MHz | 100 |
| Output Power | dBm | 4 |
| Output Impedance | Ohm | 50 |
| Supply Voltage | VDC | 5.5 |
| Supply Current | mA | 70 |
| Spurious | dBc | -100 |
| Harmonics | dBc | -20 |
| Phase noise | dBc/Hz | 100Hz -120 1KHz -137 10KHz -157 100KHz -160 1MHz -162 |
| Locked Alarm | TTL Low | |
| Reference Frequency | MHz | 10 |
| Reference Power | dBm | 5 |
| Frequency Stability | ppm | Same as ref |
| Operating Temperature | ℃ | -35 to +50 |
| Storage Temperature | ℃ | -40 to +85 |
